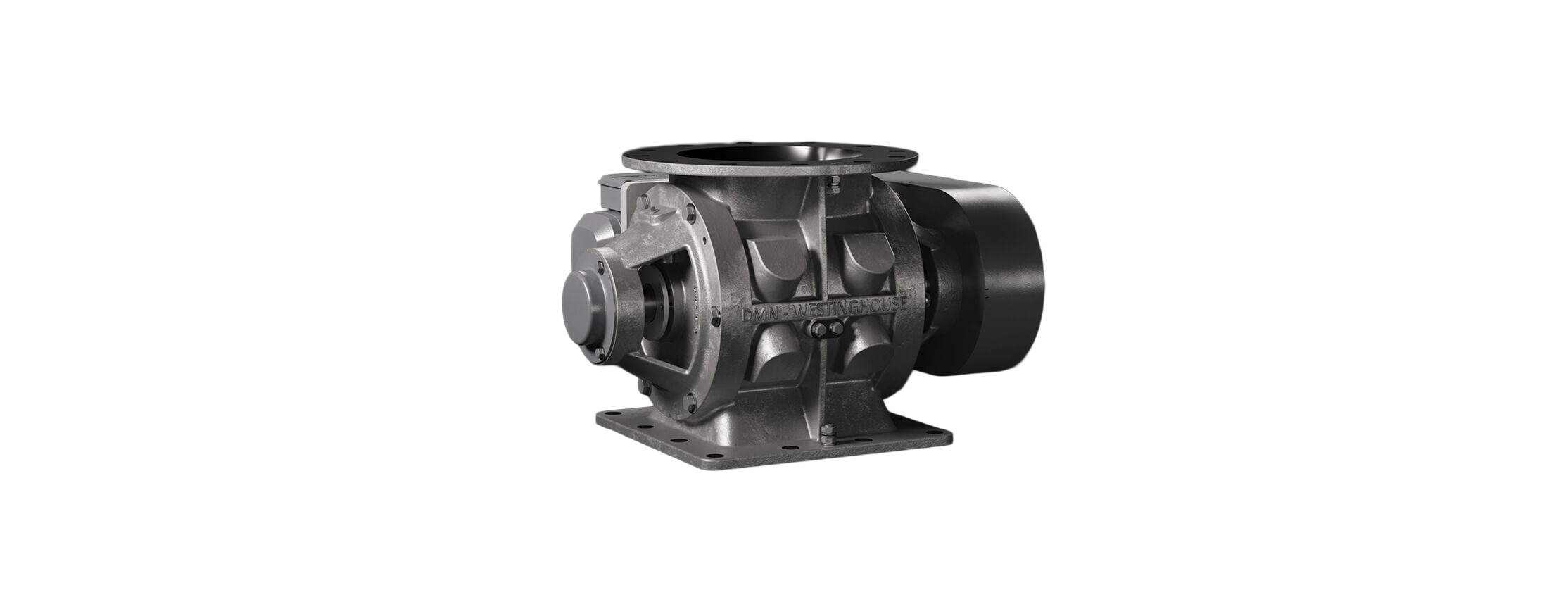

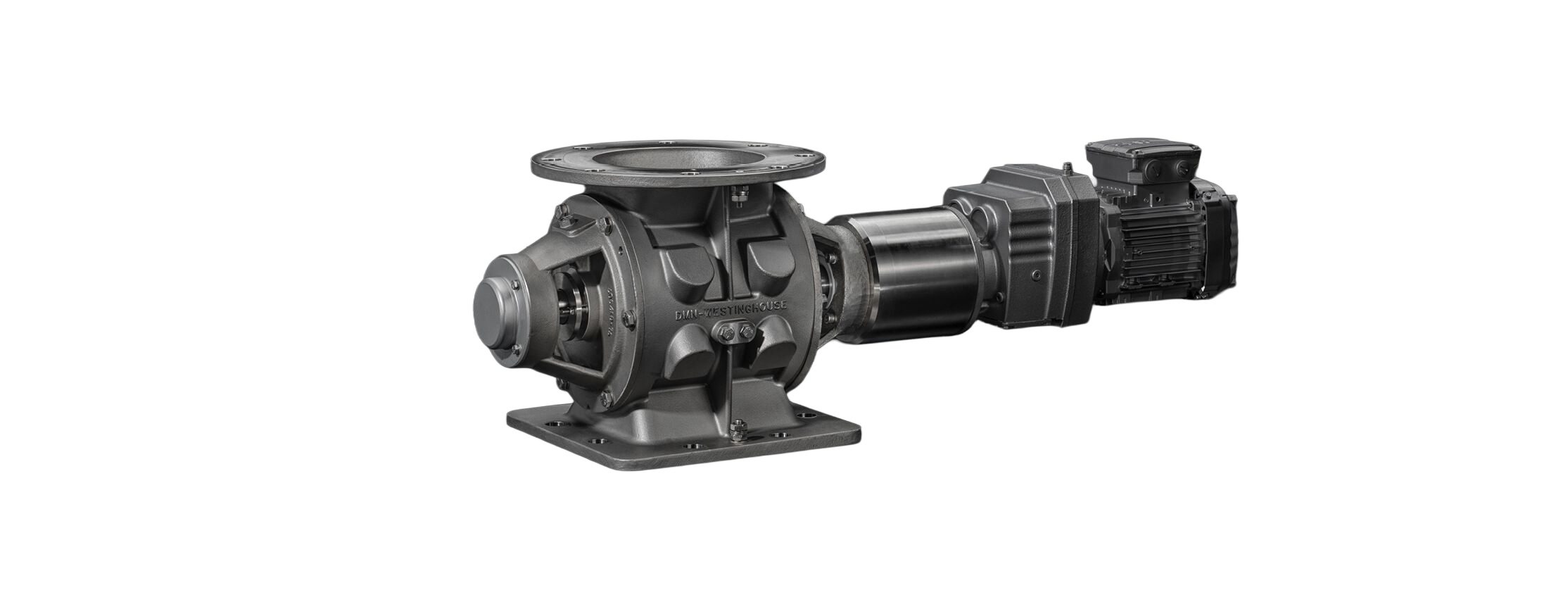

AML Rotary Valve
All-round rotary valve for metering and pneumatic conveying products in powder and granular form. AML can also act as a transition piece from round to square and vice versa.
DOCUMENTS
Key Technical Characteristics
- Capacity: 0.8–58 L/rev at 100% filling
- Sizes: AML 100–400
- Material: Stainless steel or cast iron
- Temperature: Up to +150°C
- Pressure: Up to 2 bar
- Body: One round and one square flange
- Use: Transition from round to square and vice versa
- Certifications: ATEX 2014/34/EU, EC1935/2004
