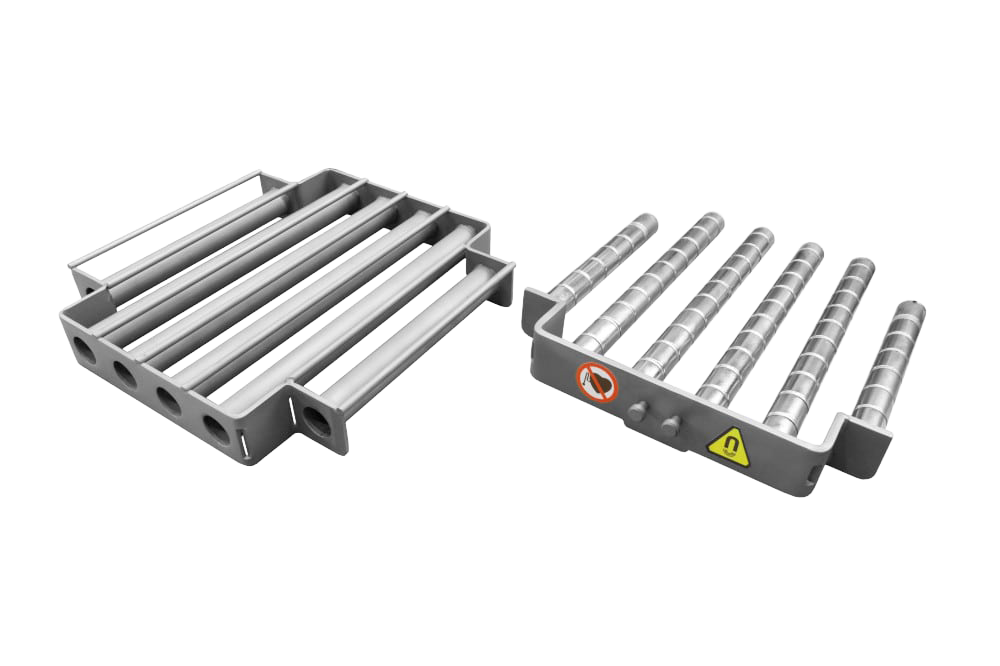

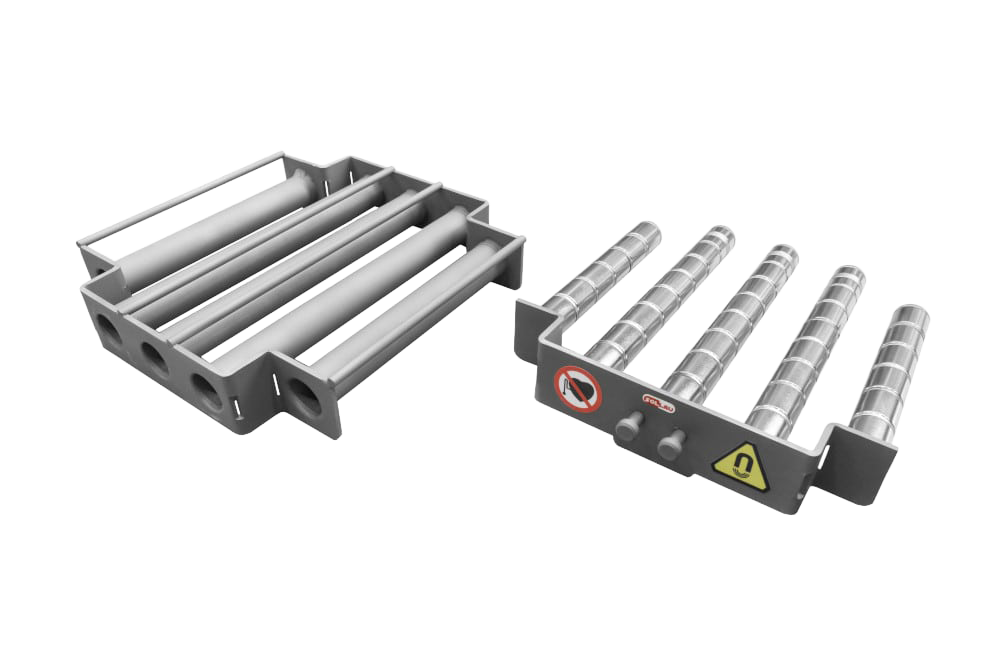

Hopper magnet TM FL
Flanged hopper magnet with integrated plate hopper, preventing material leakage over the separator edge and directing all processed material onto the magnetic tubes.
Key Technical Characteristics
- Application: Plastic injection moulding machine hoppers
- Design: Integrated plate hopper with round flange
- Flow control: Directs 100% of material onto magnetic tubes
- Induction: 9,000 G on core & up to 6,000 G on cover
- Tube diameter: 22 mm magnetic tubes
- Sizes: Seven types for hopper diameters from 100 to 400 mm
- Cleaning: Telescopic cores slide out for easy cleaning
- Feature: Prevents material leakage over magnet edge
