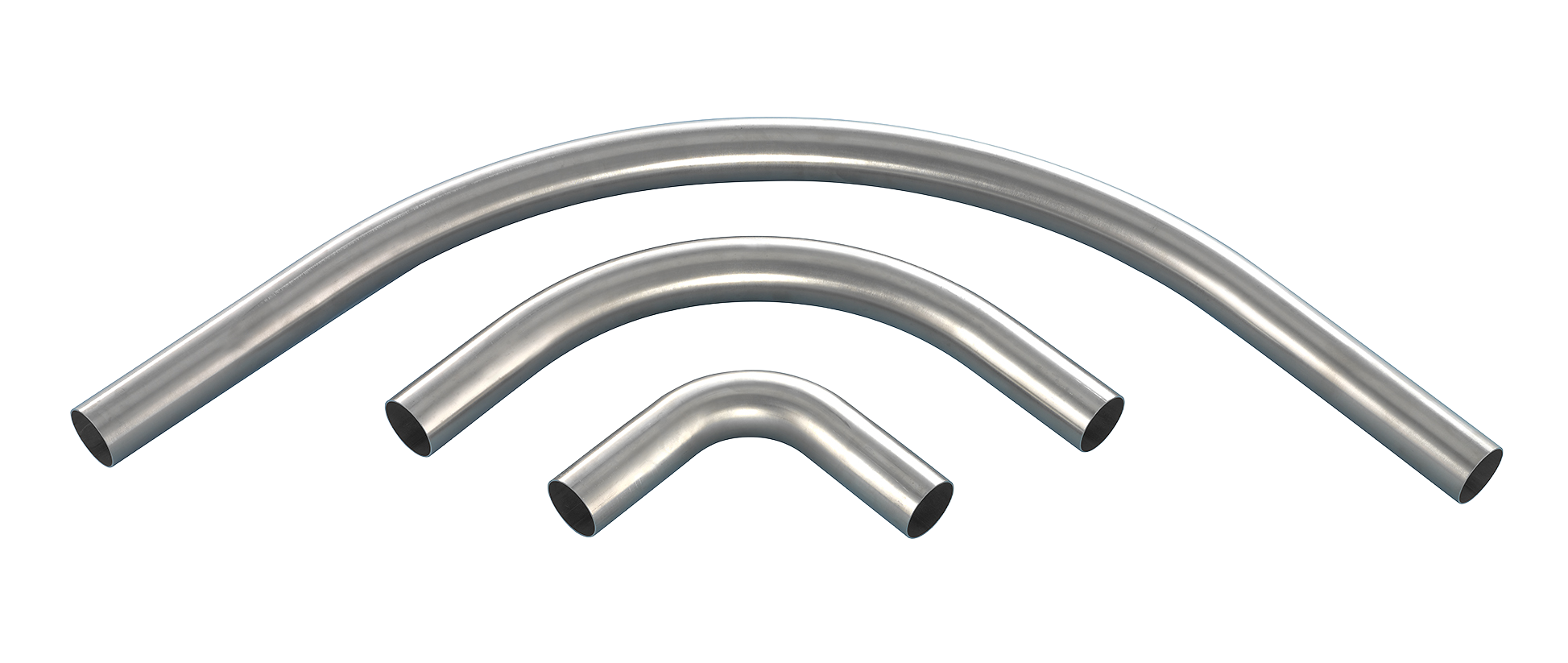

HS Stainless Steel Pipe Bends
Thin-walled stainless steel pipe bends for pneumatic conveying systems. The general range combines multiple diameters, wall thicknesses, bend radius and angles. Bends are cold formed on CNC mandrel machines, with smoothed internal weld seams, low ovality and deburred ends.
DOCUMENTS
Key Technical Characteristics
- Diameters: 38–206 mm
- Walls: 1.5–4 mm
- Radius: 70–1,500 mm
- Angles: 30°, 45°, 60° and 90°; others on request
- Materials: AISI 304/304L; 316L/316Ti on request
- Forming: Cold bent on CNC mandrel machines
- Finish: Smoothed seam and deburred pipe ends
- Quality: Wrinkle-free with very low ovality
