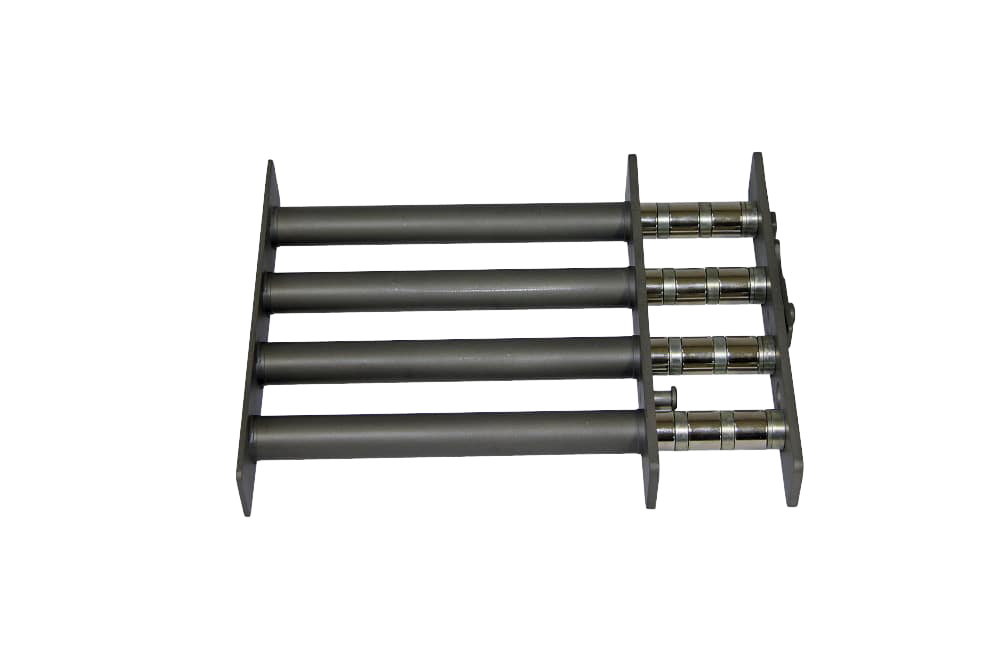

Magnetic grate MR
Magnetic grate with telescopic cores for free-flowing dry materials, using strong neodymium magnetic tubes to capture ferromagnetic particles while the bulk material falls through the grid.
Key Technical Characteristics
- Application: Free-flowing dry bulk materials
- Magnetic system: Telescopic neodymium magnetic tubes
- Induction: 18,700 G on core & up to 12,200 G on cover
- Particle capture: From 1 µm ferromagnetic particles
- Tube diameter: 32 mm magnetic tubes
- Design: Large magnetic separation area

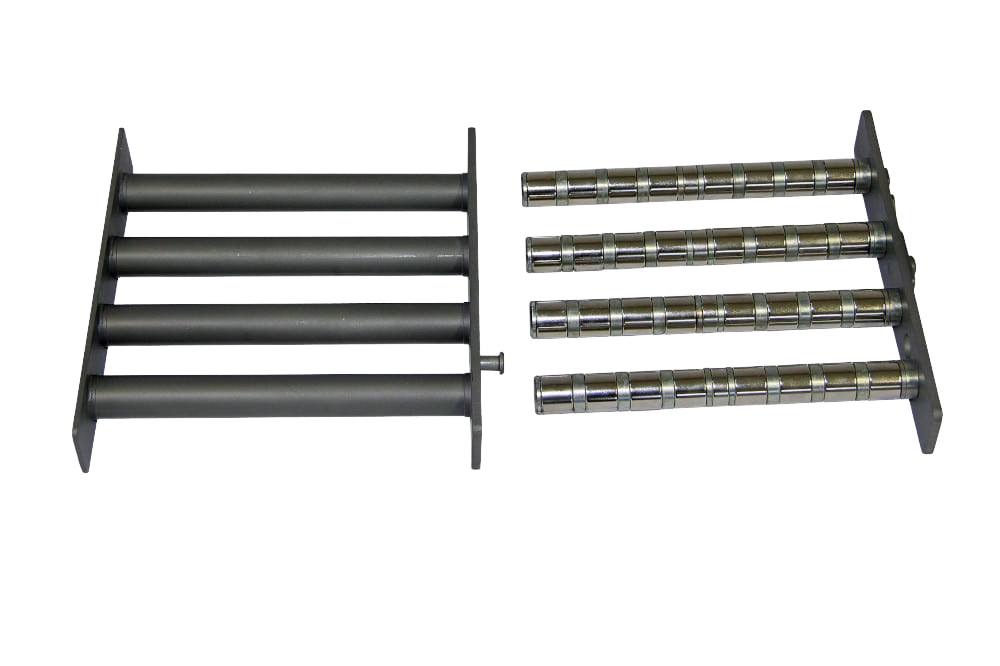

- Cleaning: Sliding cores release trapped particles
- Options: Dimensions and design adapted to customer needs
