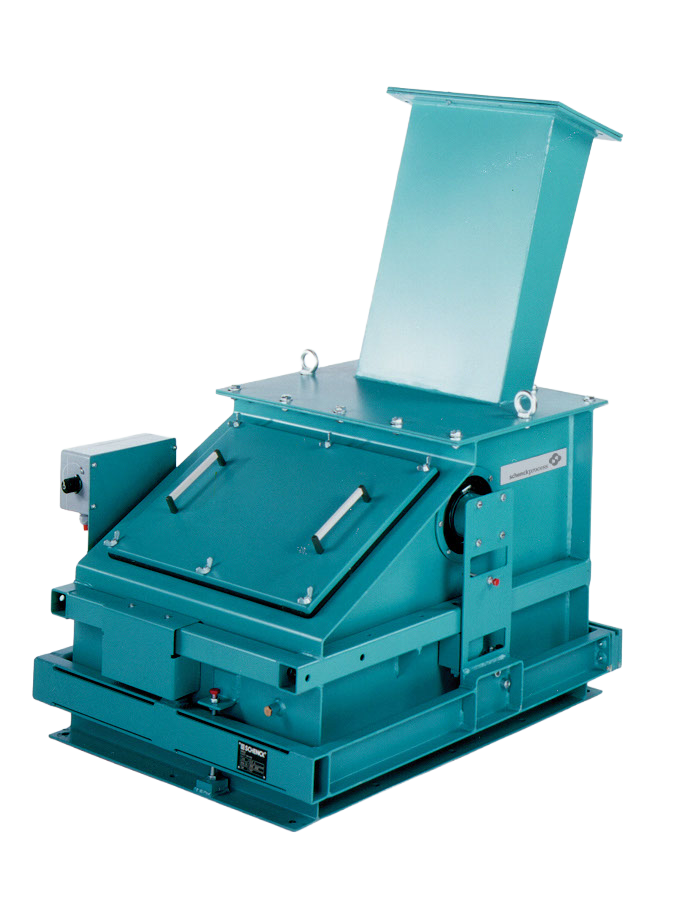

MULTISTREAM G
Compact in-line solids flow meter for continuous recording of bulk-solid streams using non-impact force measurement.
DOCUMENTS
Key Technical Characteristics
- Measuring principle: Deflection chute
- Feed rate: 4 T/h to 1250 m³/h
- Accuracy: ±2% Of nominal feed rate
- Adjustment range: 1:5
- Operating pressure: -2 Mbar to -8 mbar, ±2 mbar
- Bulk solids temperature: Max. 100 °C; optional 200 °C
- Bulk material density: Min. 0.4 t/m³
- Grain size: Max. 10 mm; individual grains up to 30 mm
