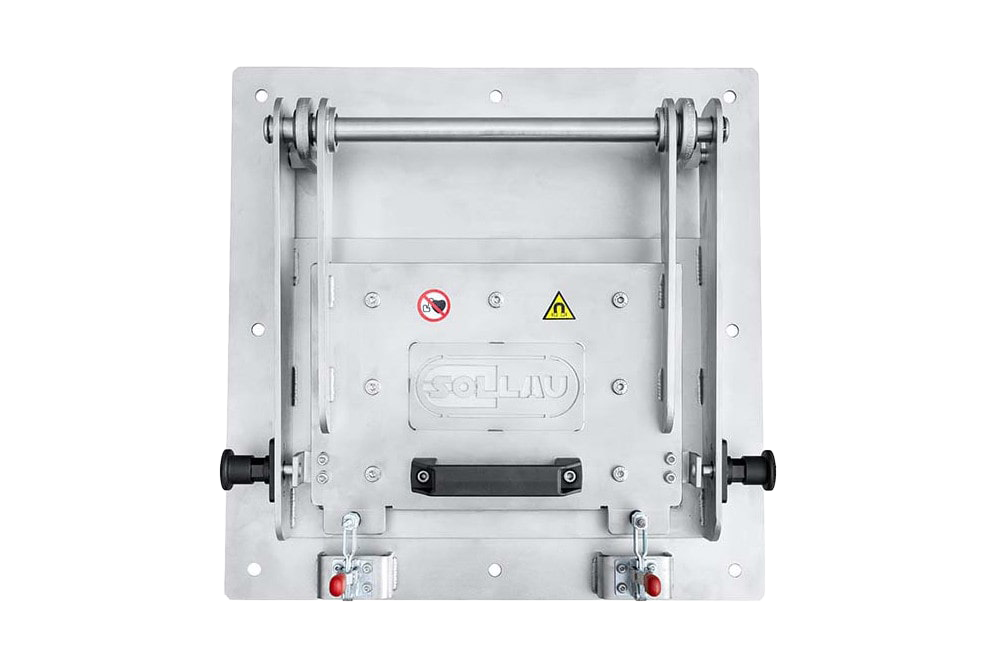

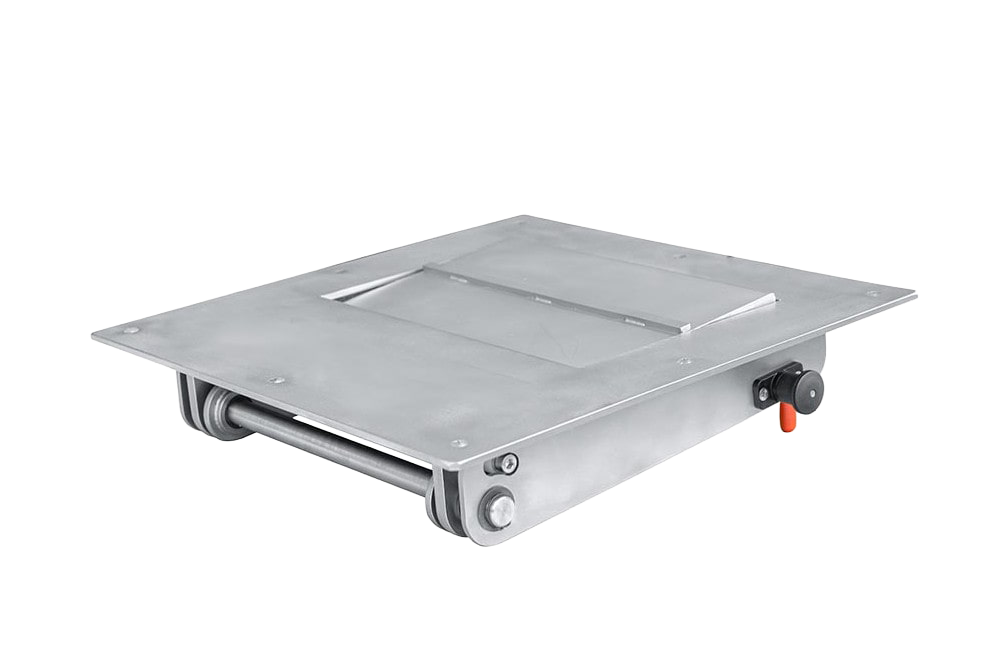

Plate magnet MS-MC-K
Tiltable plate magnet for direct installation into chutes, spouts, ducts or pipes, used where a compact magnetic separator is needed and there is space to open the magnetic door.
Key Technical Characteristics
- Application: Chutes, spouts, ducts and pipes
- Cleaning: Magnetic plate cleaned by tilting the door
- Induction: 4,500 G standard & up to 7,000 G optional
- Particle capture: From 0.5 mm ferromagnetic particles
- Installation: Cut-in installation into existing pipe/chute
- Design: Resistant all-stainless-steel construction
- Flow: No internal obstacle reducing material flow
- Options: Made-to-measure separator dimensions available
