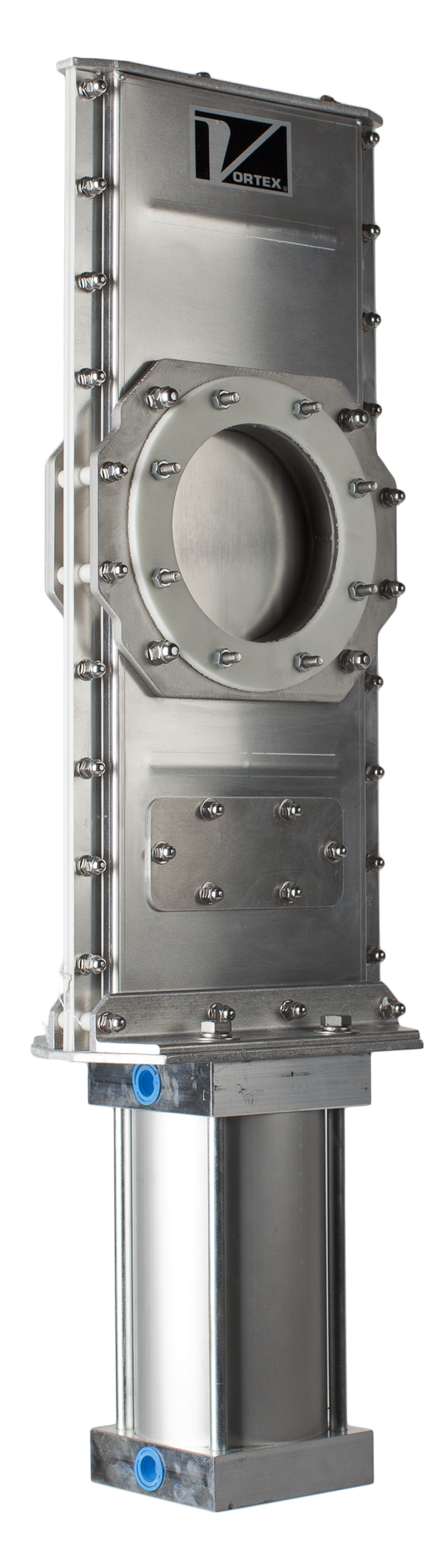

Orifice Gate
The Vortex Orifice Gate is a slide gate specifically designed for dry bulk solid materials. It is used in gravity flow and dilute phase pneumatic conveying applications where positive shut-off and reliable sealing are required.
Key Technical Characteristics
- Model: GRXX
- Conveying: Gravity flow & dilute phase pneumatic conveying
- Pressure: Up to 15 psig | 1 barg | 0.1 MPa
- Materials: Non-abrasive to moderately abrasive solids
- Standard sizes: 2-16 in | 50-400 mm
- Temperature: 180°F | 80°C standard, up to 400°F | 205°C
- Construction: Aluminum, 304 SS/painted carbon steel
- Compliance: ATEX 20 inside, ATEX 21 outside, FDA
