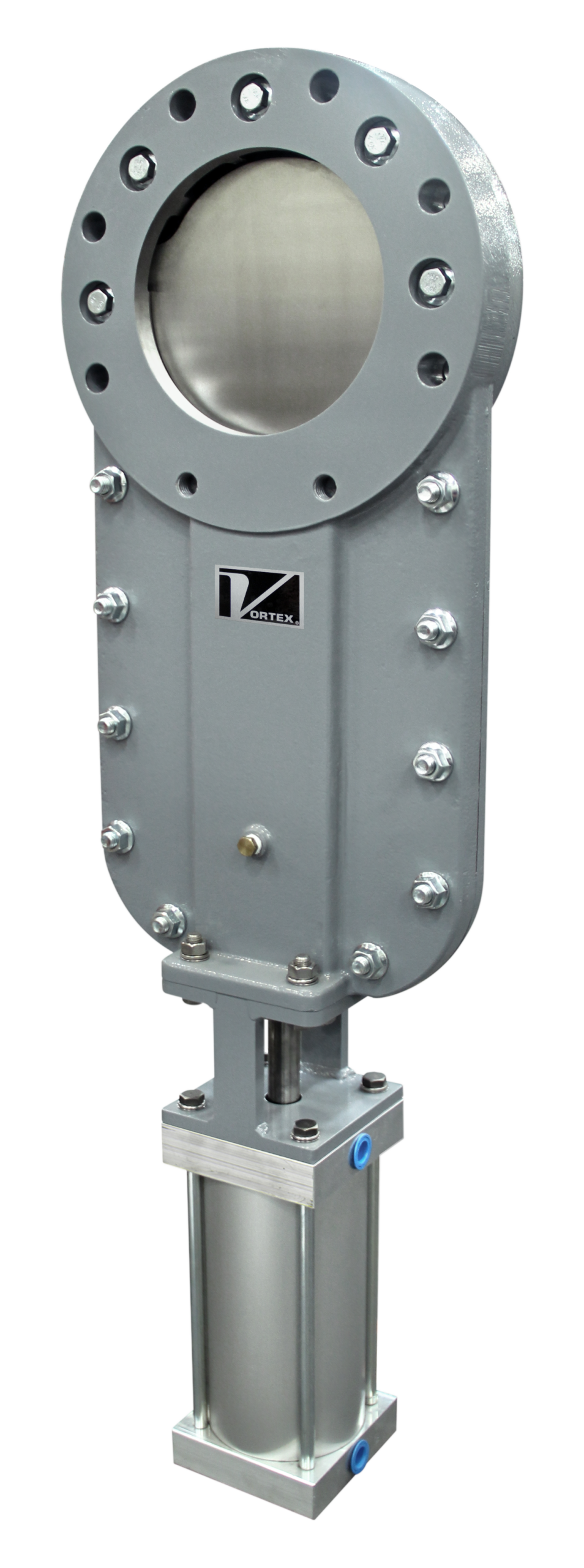

Titan Pressure Valve
The Vortex Temperature & Pressure Valve, also listed as Titan Pressure Valve, uses a rising blade that closes into an end seat. It is designed for high-temperature and high-pressure abrasive dry bulk applications.
Key Technical Characteristics
- Model: TPVXX
- Conveying: Gravity, dilute- and dense-phase pneumatic
- Pressure: Up to 100 psig | 6.8 barg | 0.69 MPa
- Materials handled: Heavy-duty and abrasive dry bulk solids
- Standard sizes: 2-10 in | 50-250 mm
- Temperature: Up to 660°F | 350°C
- Construction: Cast ductile iron body and frame
- Compliance: ATEX Zone 20 internal and ATEX Zone 21 external
